Product Introduction

Our continuous channel type drip irrigation tape (T-Tape type) is specifically designed for large-scale row-cultivated crops. Unlike

traditional embedded drip heads, it adopts an advanced fully automatic one-time molding process, with a precise labyrinth-shaped

flow channel inside. No additional plastic gaskets are required. This design not only significantly reduces production costs but also

avoids the risk of gaskets falling off, ensuring consistent water discharge even over extremely long distances.

Core Technical Specifications

Item	Specification
Type	Continuous Flow Path
Diameter	16mm
Wall Thickness	0.15mm-0.30mm(6mil/8mil/12mil)
Spacing	10cm/20cm/30cm
Flow Rate	1.0L/h-3.0L/h
Working pressure	0.5-1.0bar
Roll length	1000m/2000m/2500m

Why choose our drip irrigation tape? (Core Benefits)

• Outstanding anti-clogging performance: The labyrinth flow channel design is wide, and the turbulent effect of water flow realizes the "self-cleaning" function, effectively preventing the deposition of impurities in the water and prolonging the service life.

• Uniform water discharge, stable production and quality assurance: Precise mechanical drilling technology ensures that the flow

error of each water outlet point is extremely small. Even in farmland with slight terrain undulations, it can ensure the water balance of

the entire row of crops.

• High strength against stretching: Using 100% natural polyethylene (PE) material, it has excellent flexibility and tensile strength,

capable of adapting to rapid mechanized laying and recovery.

• Anti-aging and UV resistance： Adding high-efficiency carbon black and anti-oxidation additives， it can remain non-crystalline even when exposed to intense sunlight for a long time， perfectly adapting to hot and arid climates such as those in Mexico.

Customer pain point solutions (Solving Your Problems)

For large farmers:

"We are well aware that burst irrigation pipes can be devastating for large-scale farming. Our products have undergone rigorous pressure tests, with the bursting pressure far exceeding industry standards, ensuring that your irrigation system remains operational during

critical growth periods."

Application Areas (Wide Applications)

• Vegetable Cultivation: Tomatoes, peppers, potatoes, strawberries, melons.

• Cash Crops: Corn, cotton, sugar cane.

• Greenhouses and Warmhouses: Precisely control water and fertilizer loss, increase fertilizer utilization rate.

Packaging and Global Services (Service & Logistics)

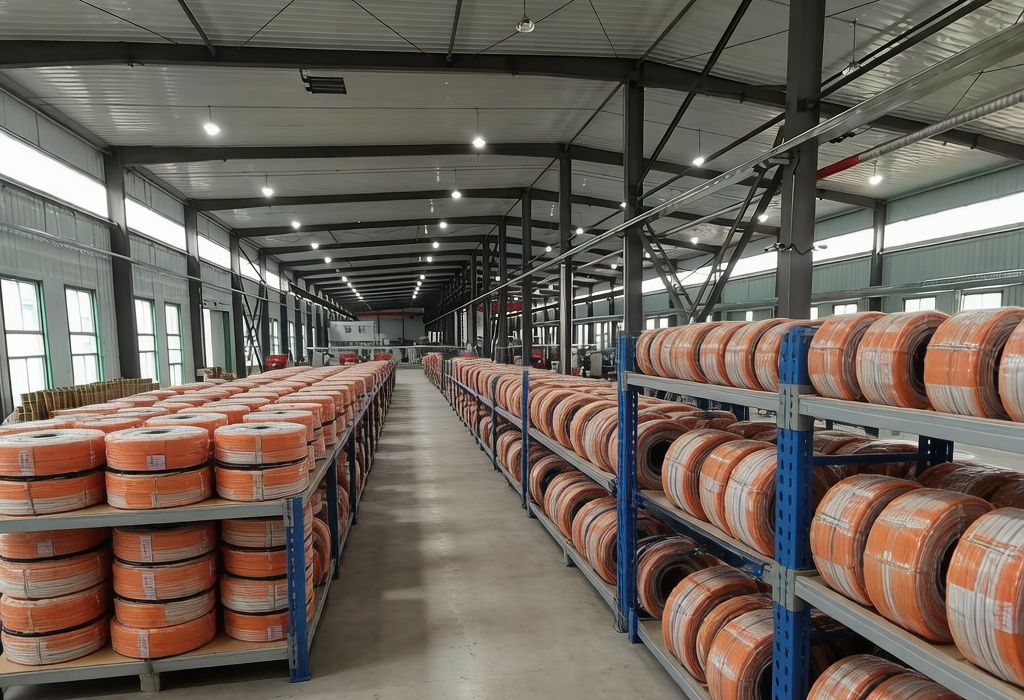

• Export-grade packaging: Special pressure-resistant cardboard reels + dust-proof protective film to ensure no deformation during

maritime transportation.

• Support for OEM: Customizable color strips, spacing, and outer packaging according to your brand requirements.

• Professional consultation: Provide irrigation system layout suggestions to help you achieve water and fertilizer integration

management.
